P-IND SERIES.

2022-05-02 16:38:36


.FEATURES

- High temperature materials allow operation in ambient temperatures up to 180°C.
- Soldered self-leaded construction for excellent solderability.
- Very low DCR values and excellent current handling

2.APPLICATIONS

- DC/DC converter, LNB(Set top box ,LED, Mobile)

3.SPECIFICATIONS

Power Inductors for Power Circuits

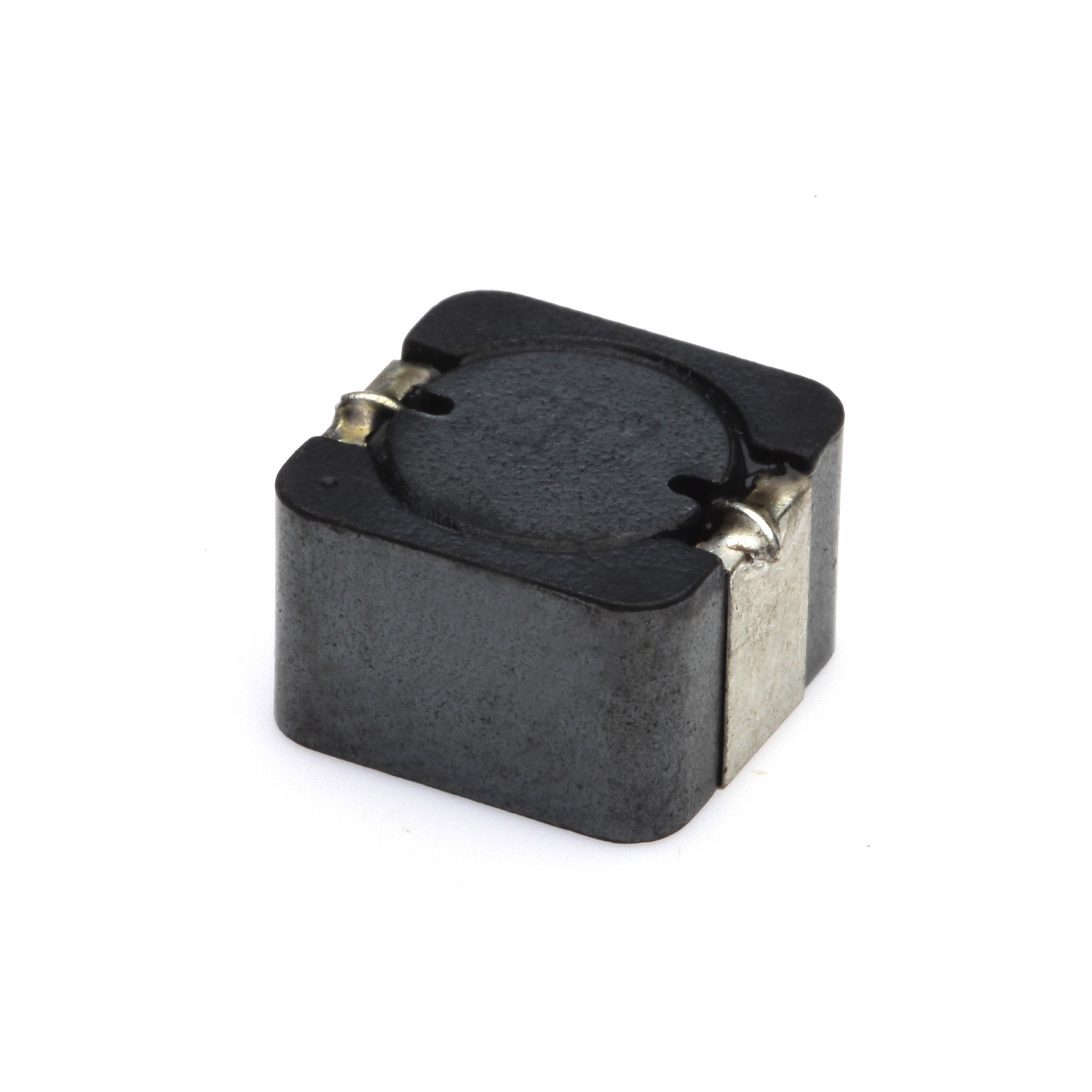

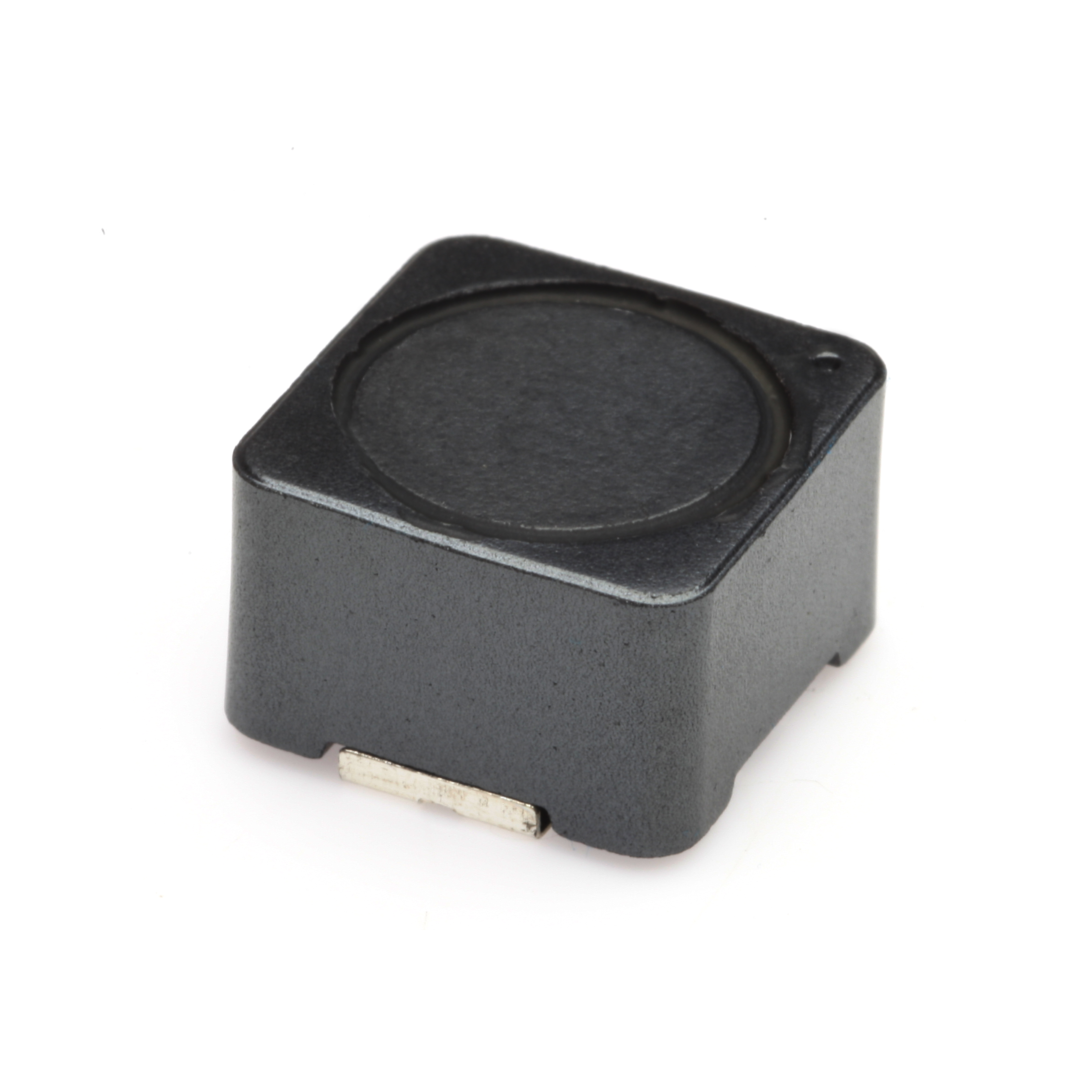

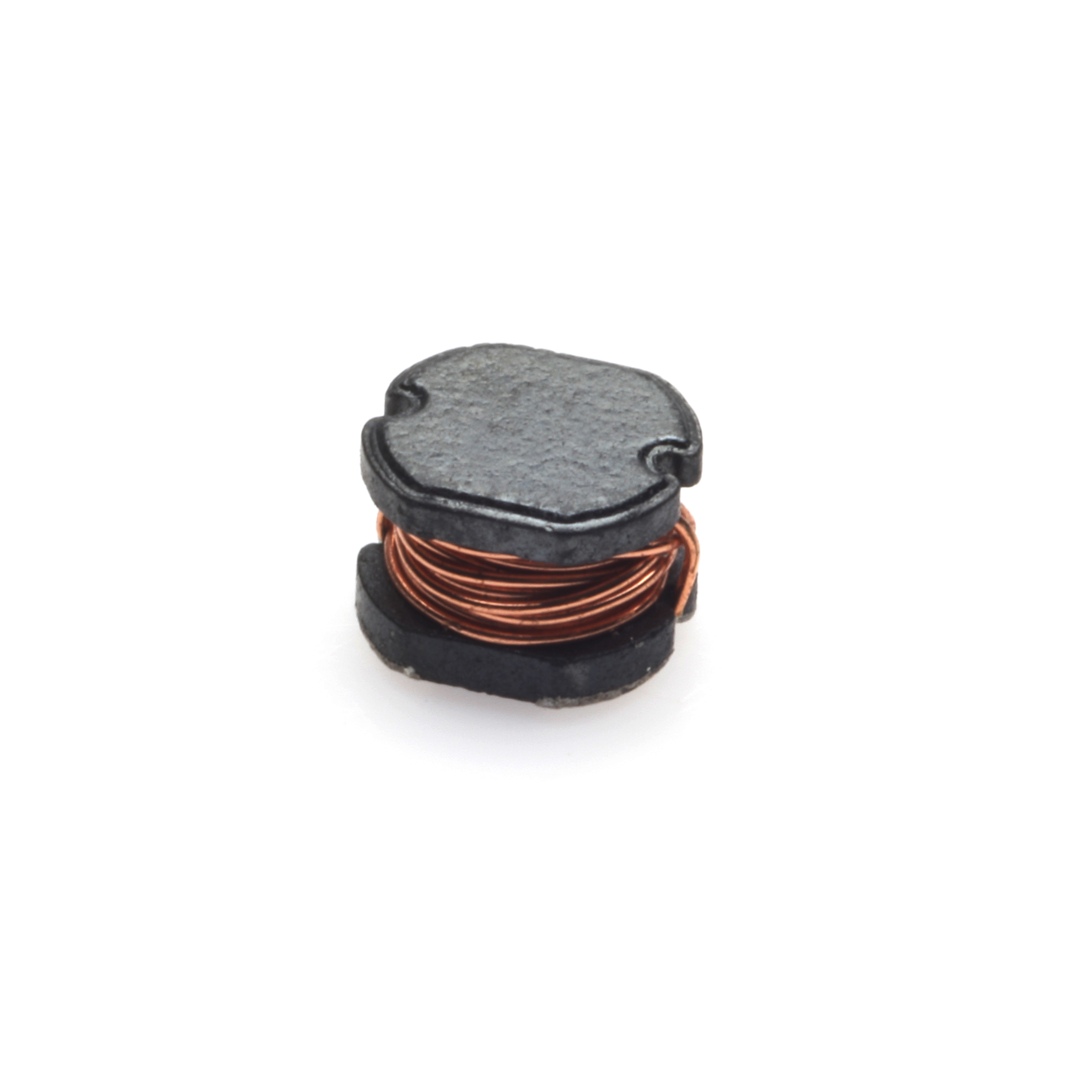

Image	Series	Part number	L x W(mm)	Height(MAX)	Data sheet
	SPY Series	SPY5022	5 X 5	2.5
	SPM Series	SPM3215	3 X 3	1.7
		SPM3220	3 X 3	2.2
		SPM4532	4.5 X 4	3.35
		SPM6050	5.8 X 5.2	4.65
		SPM8050	7.8 X 7	5.15
		SPM10060	10 X 9	5.55
	SPC Series	SPC6025	6 X 6	2.5
		SPC7030	7 X 7	3.0
		SPC7040	7 X 7	4.0
		SPC7060	7 X 7	6.0
		SPC10040	10 X 10	4.0
		SPC12060	12 X 12	6.0
		SPC12080	12 X 12	8.0
	SPE Series	SPE3012	3 X 3	1.21
		SPE3015	3 X 3	1.8
		SPE4015	4 X 4	1.8
		SPE4020	4 X 4	2.3
		SPE4030	4 X 4	3.3
		SPE5020	5 X 5	2.3
		SPE5040	5 X 5	4.3
		SPE6028	6 X 6	3.1
		SPE6045	6 X 6	4.8
		SPE8040	8 X 8	4.3
	SPS Series	SPS6028	6 X 6	2.8
		SPS7032	7 X 7	3.2
		SPS7045	7 X 7	4.5
		SPS7060	7 X 7	6.0
		SPS10050	10 x 10	5.2
		SPS10050M	10 x 10	5.2
		SPS12060	12 X 12	6.0
		SPS12060M	12 X 12	6.0
		SPS12080	12 X 12	8.0
		SPS12080M	12 X 12	8.0
		SPS15060M	15 X 15	6.0
		SPS15080M	15 X 15	8.0
